ED Compact BAK4 Bincoculars


Product Feature:

1) Roof-prism binocular with 8x magnification ,25-millimeter objective diameter and all-optical lens ensures a high definition optical for greater clarity: especially with Extra-disperation +BAK4 Phase+Die-electric coating.

2) Foldable design allows user to adjust the wideness of eyes, palm sized requires less space when user put it into pocket or backpack.

3) Compact and Lightweight ,Strip Portable Design, easy to carry.

4) Adjustable eyecups twist up and down for comfortable viewing with or without eyeglasses.

5) Center focus wheel adjusts the focus of both binocular barrels at the same time.

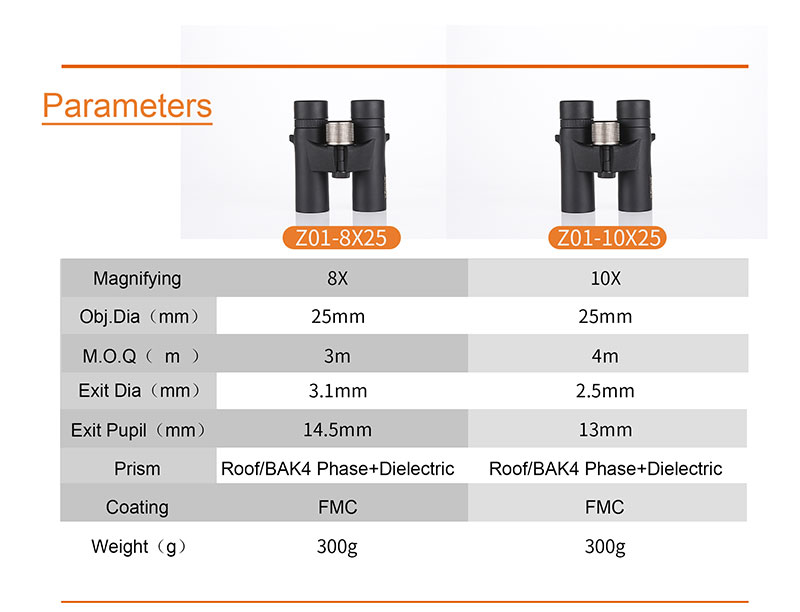

Product Specification:

Model No.Z01 825Z01 1025
Obj. Lens Dia.25mm25mm
PrismRoof / BAK4Roof / BAK4
Lens CoatingMulti CoatedMulti Coated
Exit pupil dia.3.0mm3.0mm
Exit pupil distance14.5mm13mm
Field of view(Angle)6.3°6.5°
Focusing system

Center focusing

Center focusing
Mini. observation distance2.5m3m
Unit Dimension(cm) 107*39*115107*39*115
Unit Weight (g)300g300g
Packing boxBag+pouch+color gift boxBag+pouch+color gift box
